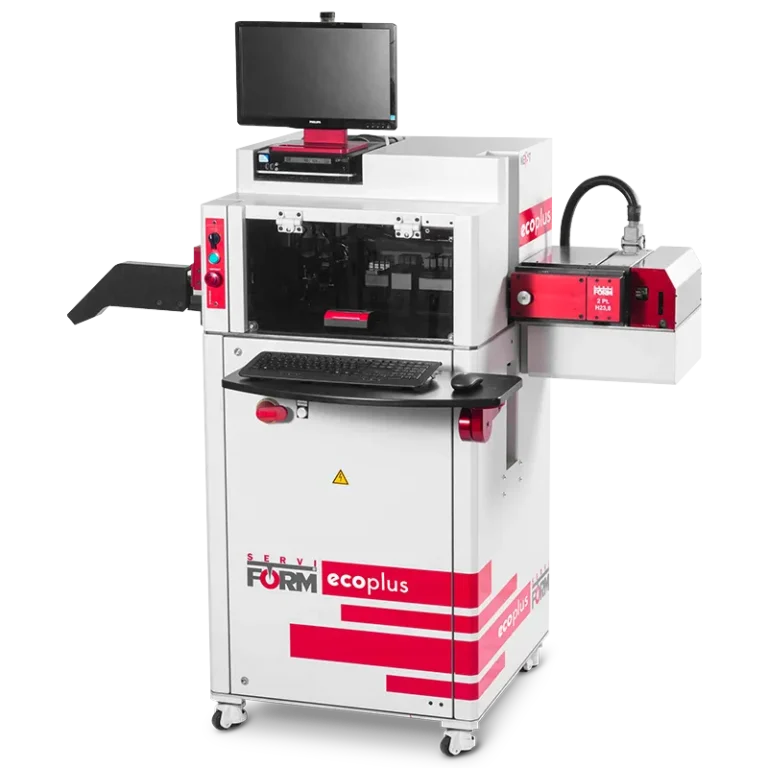

EcoPlus

When Standard Benders Fall Short, EcoPlus Steps Up.

Basic benders can’t keep up—manual tweaks, slowdowns, and limited features hold your shop back. The EcoPlus changes the game. Fully automatic, fast, and customizable, it tackles complex layouts with ease. With features like revolver nicking, dovetail cutting, and interchangeable bending sleeves, it’s built for diemakers ready to boost precision and crush downtime.
Speak with a Sales Rep today

Why shops upgrade to this machine

  • Handles complex layouts with precision, speed, and full automation, eliminating production bottlenecks.
  • Offers cutting-edge technology at an affordable price, allowing for efficiency without overspending.
  • Customizable with options like revolver nicking, dovetail cutting, and cut/crease to meet any special rule requirement.
  • Interchangeable bending sleeves and automatic broaching ensure smooth, precise operations with minimal downtime.
“Bending speed and accuracy is unbelievable! This is the exact solution our team was looking for — and more!”
— Cal Plate, Artesia, California

Standard features

  • Bridging
  • Straight Cut
  • Bending
  • Miter

Optional features

Clipped Corners for Steel Counters
Perforation
Revolver Nicking
Automatic Broaching Unit
Dovetail
Jointlock Option
Cut/Crease
Scribing
Interchangeable Bending Sleeve
Speak with a Sales Rep today

Highlights

Perfect interface ability, extreme flexibility

Serviform machines run on the powerful SDDS software—purpose-built for die making and designed on a reliable Windows OS foundation. Every operation is electrically or pneumatically driven, cutting out the complexity of hydraulics and delivering smooth, dependable performance. Network it with other Serviform systems and watch your shop’s efficiency climb. And with the EcoPlus, control gets even tighter, thanks to multiple industrial PLCs managing the entire system for next-level precision and reliability.

Precision and Performance Without Compromise

EcoPlus is a fully automatic, high-performance bender that expertly handles steel rule from 1.5 to 4 Pt, up to 32 mm in height. Sharing cartridge compatibility with the Idea model, it guarantees premium punching results. With its innovative bending sleeve design, switching between rule thicknesses takes just seconds. EcoPlus also supports a full suite of special operations—including perforation, cut crease, and dove tail combo rule—made possible with optional tools like the Revolver nicking cartridge and a double-side broaching unit with quick-change tooling. Speed, flexibility, and quality are built right in.

Bend first, cut last technology

Built for the demands of top-tier die makers—EcoPlus now features next-generation bending sleeve technology.
Switching between rule thicknesses? Done in seconds. Whether it’s 1.5, 2, 3, or 4 PT, EcoPlus is ready. And with the power to handle rule heights up to 1.25 inches, this bender keeps your production fast, precise, and reliable—no compromises.

Technical specifications

Bending Capabilities

  • Bending Heights: Can work with rule heights up to 1.25 inches
  • Rule Points: Can work with 1.5 PT, 2 PT, 3 PT and 4 PT rule.
  • Standard Features: Bending, Bridging, Straight Cut, and Miter.
  • Special Add-On: Perforation, Interchangeable Bending Sleeve, Automatic Broaching, Revolver Nicking, Clipped Counters, Cut/Crease, Dovetail, Jointlock Option, Scribing, Micronick.
  • Interchangeable Bending Sleeve: In a matter of seconds, steel rule thickness can be changed from one PT to another.
  • Revolver Nicking: The revolver nicking cartridge delivers perfect, burr-free nicks with consistent depth—every time. Nick positions import automatically from your CAD file and are fully controlled right on the bender.

Hardware & Performance

  • Machine Body: 1550 x 1100 h 1700 mm (61” x 43.31” h 66.93”)
  • Coil Holder Trolley: 690 x 815 h 1040 mm (27.6” x 32.1” x h 41”)
  • Tool/Bending Head Holder Dimensions: 500 x 640 h 800 mm (19.68” x 25.2” h 31.5”)
  • Machine Body Weight: 520 Kg (1146 lbs)
  • Coil Holder Trolley Weight: 60 Kg (132 lbs)
  • Tool/Sleeves Holder Weight: 65 Kg (143 lbs)

Software & Control

  • Hardware: x86 Compatible Windows
  • Data Input: .CF2/ .DXF/ .DWG/ .DDE/ .DDS/.DD3/ .DS2/ .NC/ .RUL/ .N/ .RTX
  • SDDS Software: Serviform Machines operate on an innovative software system developed by Serviform, based on Windows OS, specifically to meet the needs of the die making industry.
  • Machine Control: EcoPlus machine control is now managed entirely by multiple industrial PLCs.

Power & Consumption

  • Power Supply: 220V +/-10% 50/60hz 1P
  • Compressed Air Supply: 6 bar (90 psi)
  • Power Consumption: 2kW
  • Compressed Air Consumption: max 10 Nl/min

Maintenance & Support

  • Manufacturing origin: Made by die makers, for die makers in Carvaggio, Italy.
  • U.S. support: 7 Factory trained tehnicians located across the USA.
  • Parts availability: Fully stocked parts and customer service in Atlanta, GA.
  • Diagnostics: Customer support and remote servicing available for quick and immediate help.

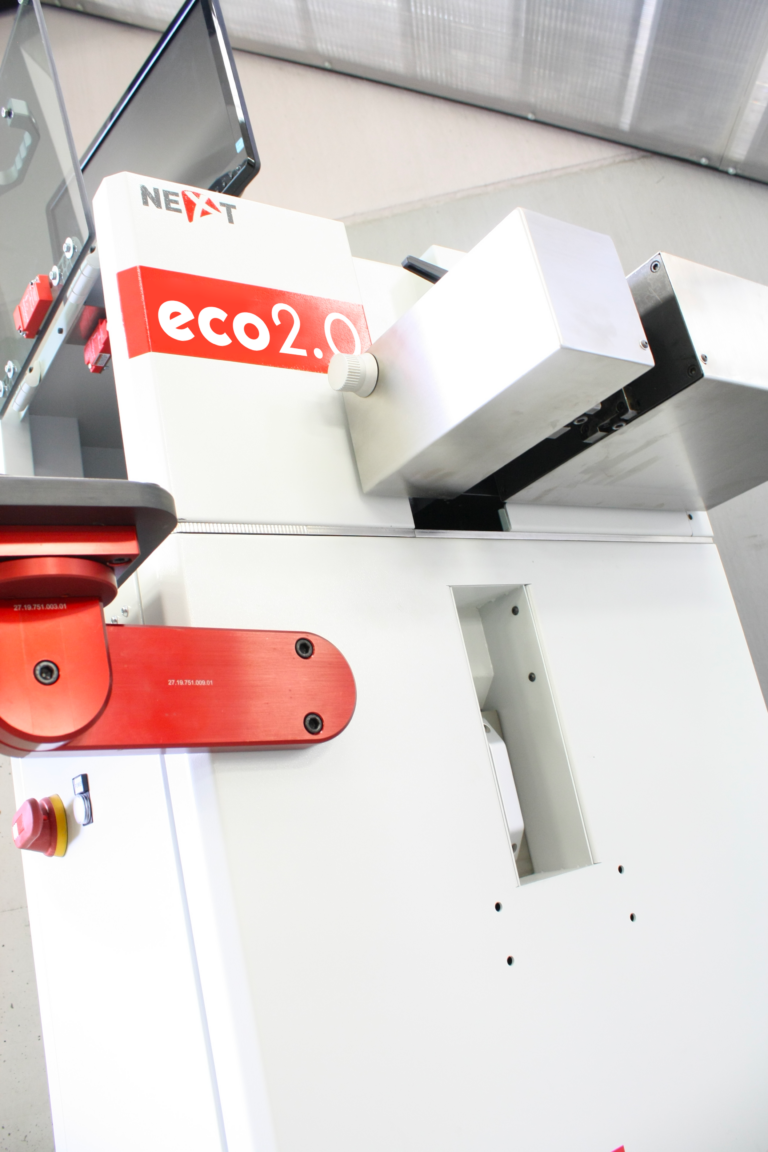

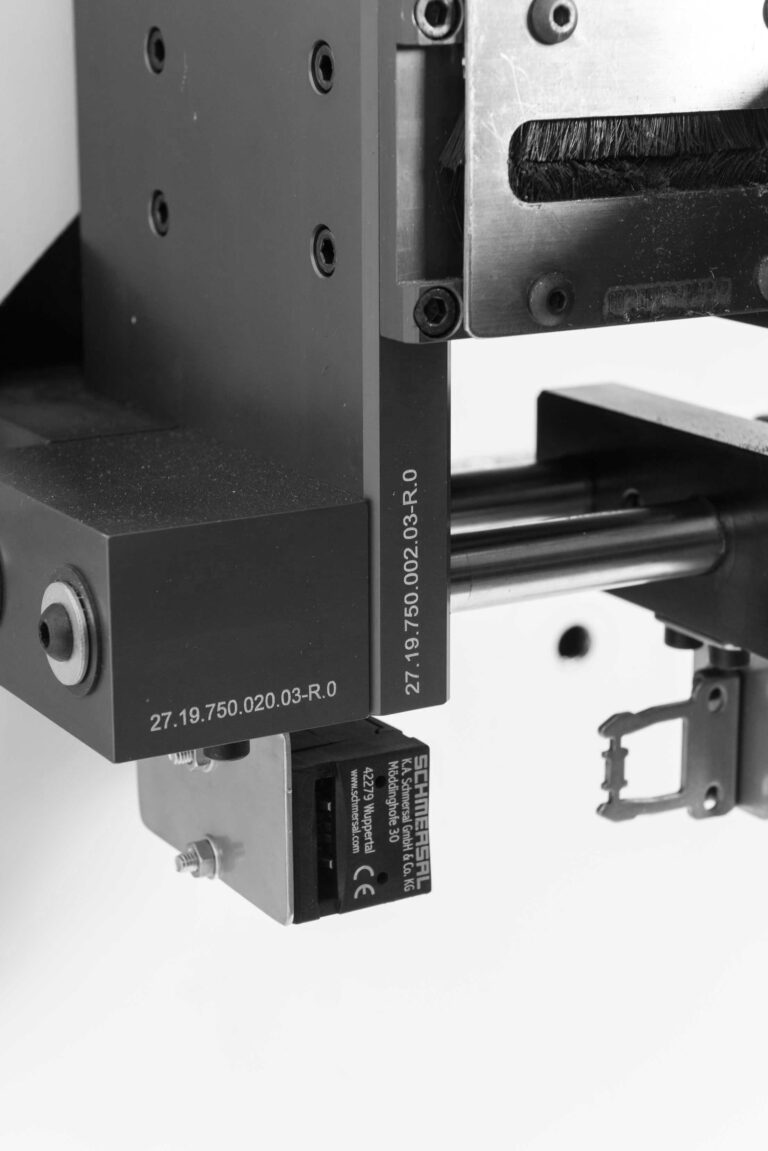

Image gallery

Speak with a Sales Rep today
Outdated machines and slow support cost you time and money—Serviform delivers reliable die making equipment and fast service, so your shop stays productive and stress-free.
