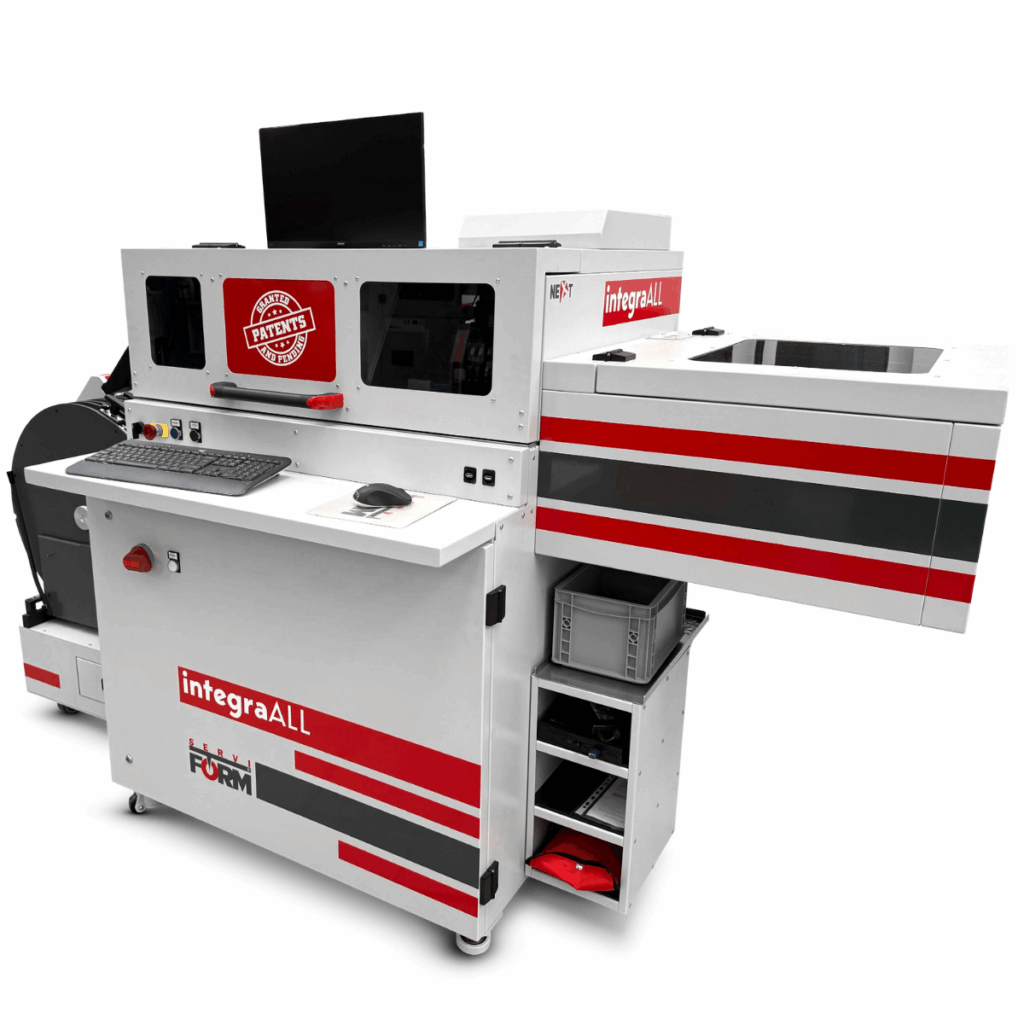

IntegraALL

The Only Rule Processor You’ll Ever Need.

Die makers know the challenge: producing specialty rules like cut-crease, lasercrease, or perf often means juggling multiple machines, added setup time, and constant tool changes. Mounting separate pieces slows production and creates room for error — especially when you're dealing with steel plates and precision work.

The IntegraALL eliminates the bottlenecks. With unmatched flexibility, it processes straight cut, creasing, perforating, and even complex cut-crease rules — all in one centralized machine. It's the faster, smarter way to handle ALL your steel rule needs.

Why shops upgrade to this machine

  • All-in-One Processing: Handles straight cutting, creasing, cut-crease, perforation, and Lasercrease rule in one machine.
  • Faster Production: Three next-generation multi-function cartridges enable multiple operations at once — boosting output speed dramatically.
  • Transform creasing rule into cut/crease combo rule at custom lengths in a single piece.
  • Fully Electric Efficiency: No hydraulics, no waste — just clean, reliable, low-power operation built for the modern die shop.
  • Smarter Software: Advanced interface with remote programming from other Serviform machines — seamless integration across your workflow.
  • Integrated automatic sorting system keeps your workflow fast, clean, and organized.
“It’s the best of both worlds – you can bend on the bender and process straight pieces on the Integra!”
— Montreal Dies, Canada

Standard features

  • Bridging
  • Straight Cut

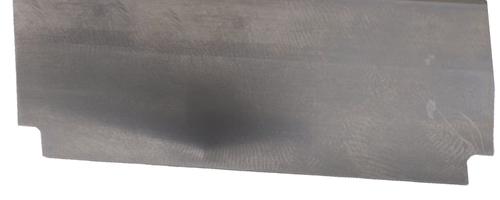

  • Clipped Corners
    for Steel Rule Counters

Optional features

Scribing
Perforation
Revolver Nicking
Lasercrease
Dovetail
Clipped Corners for Steel Counters
Radius Cut
Special Bottom Cut to Avoid interference with Shim Tape
Rule Dimpling
Transform crease rule into cut/crease combo rule at in a single piece.
Cut/Crease

Highlights

One Machine. All Operations.

IntegraALL processes straight cutting, creasing, cut-crease, perforation, and Lasercrease rule in a single setup. No need to switch machines or manage multiple workflows — just load your rule and go. It's the centralized solution die shops have been waiting for.

Smarter Software, Seamless Control.

IntegraALL runs on the latest version of our die making software, designed for speed, stability, and ease of use. The Windows®-based PC handles the graphics, while industrial-grade PLCs manage machine operations — ensuring smooth, reliable performance every time.

Built to Speed Up Your Shop.

Equipped with three next-gen multifunction cartridges, IntegraALL performs multiple operations simultaneously — including punching, bridging, and chamfering. This dramatically cuts cycle time and boosts productivity, all while maintaining unmatched accuracy.

Let the Machine Do the Sorting.

A motorized sorting unit organizes finished pieces automatically, cutting down handling time and boosting efficiency. Fully electric and energy-efficient, IntegraALL is built for smart, streamlined die making.

Technical specifications

Processing Capabilities

  • Steel Rule Thickness: 2 Pt. 3 Pt. 4 Pt. (0.71 mm, 1.07 mm, 1.42 mm) and Lasercrease
  • Steel Rule Height: 18 - 32 mm (0.708” - 1 1/4”)
  • Standard Features: Bridging, Straight Cut, and Clipped Corners for Steel Counters.
  • Special Add-On: Perforation, Lasercrease, Rule Dimpling, Revolver Nicking, Clipped Counters, Cut/Crease, Dovetail, Scribing, and Special Bottom Cut to Avoid Interface with Shim Tape.

Hardware & Performance

  • Machine Body: 85” x 44” x 67”
  • Coil Holder Trolley: 28” x 32” x 41”
  • Machine Body Weight: 440 Kg (970 lbs.)
  • Coil Holder Trolley Weight: 60 Kg (132 lbs)

Software & Control

  • Hardware: Windows Compatible
  • Data Input: .CF2 .DXF .DXF .DDE .DD3 .DS2 .RTX
  • SDDS Software: Serviform Machines operate on an innovative software system developed by Serviform, based on Windows OS, specifically to meet the needs of the die making industry.
  • Machine Control: Machine control is now managed entirely by multiple industrial PLCs.

Power & Consumption

  • Power Supply: 220V +/-10% 50/60hz 1P
  • Compressed Air Supply: 6 bar (87 psi)
  • Power Consumption: 2,5 kW
  • Compressed Air Consumption: max 10 Nl/min
  • Fully Electric: Fully electric and power requirements are reduced to a bare minimum.

Maintenance & Support

  • Manufacturing origin: Made by die makers, for die makers in Carvaggio, Italy.
  • U.S. support: 8 Factory trained tehnicians located across the USA.
  • Parts availability: Fully stocked parts and customer service in Atlanta, GA.
  • Diagnostics: Customer support and remote servicing available for quick and immediate help.
